In injection molding factories, how raw materials are transported from storage to machines can significantly impact production efficiency, energy consumption, and operational cost. Whether you’re running a small workshop or a factory with 100+ machines, choosing the right material conveying method is a critical decision.
In this article, we compare the most common conveying methods and provide guidance on how to select the best one for your plant.
1. Manual Material Handling
Manual conveying involves operators physically transferring plastic granules using bags, buckets, or trolleys.
Pros:
- Low initial investment
- No technical setup needed
Cons:
- High labor costs
- Risk of contamination
- Inconsistent material supply
- Not scalable for large operations
This method may suit small-scale operations or temporary setups but is not ideal for long-term production.

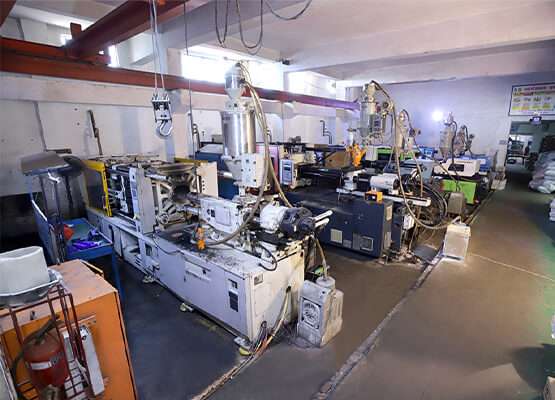

2. Individual Vacuum Loaders
Each machine is equipped with its own hopper loader to convey material from nearby storage bins.
Pros:
- Semi-automated
- Suitable for small to medium-sized factories
- Easy to install and expand
Cons:
- Requires frequent filter cleaning
- Noise from multiple units
- Difficult to monitor material levels centrally
- Higher maintenance load per machine
This method works well when you have fewer than 10 molding machines and limited budget for automation.

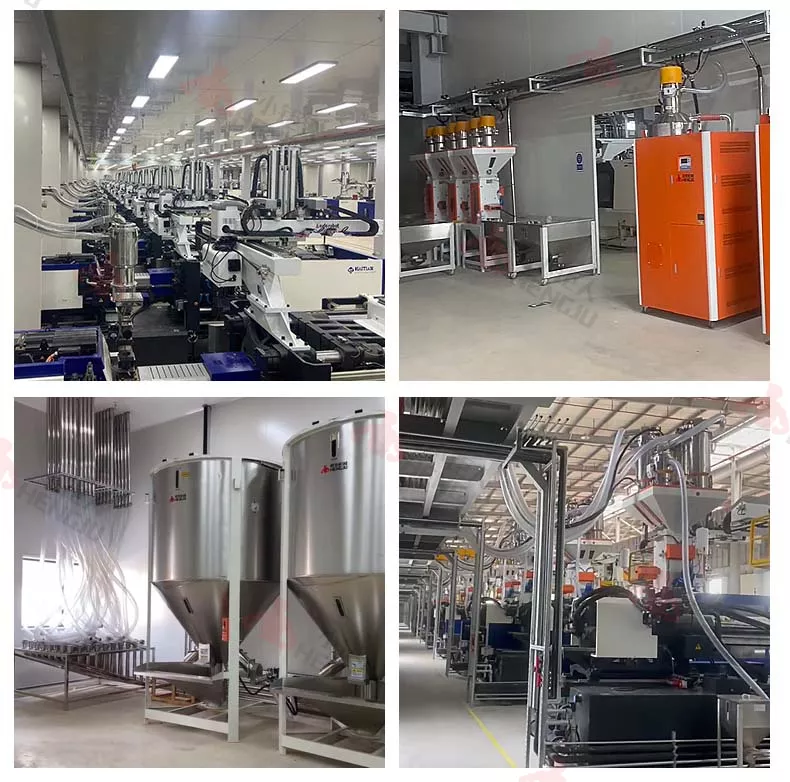

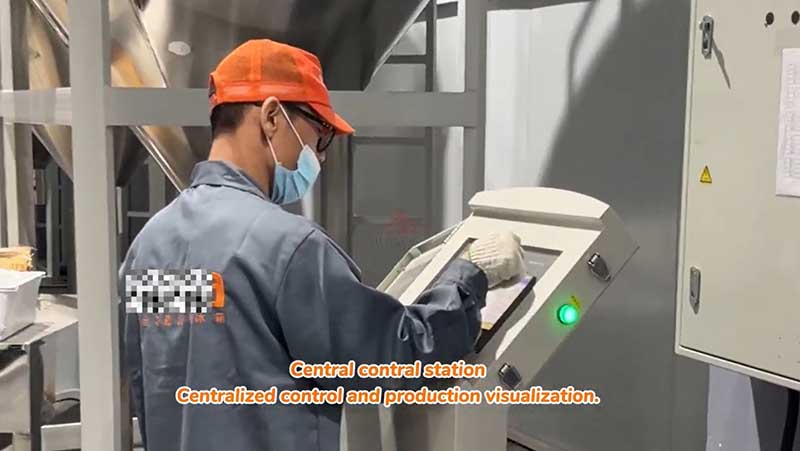

3. Central Feeding System
A central feeding system uses a central vacuum station to transport material to multiple machines via pipelines. It supports automatic switching between materials and is fully programmable.
Pros:
- Clean and dust-free environment
- Lower energy consumption per ton of material
- Centralized maintenance and monitoring
- Supports 24/7 non-stop production
Cons:
- Higher initial investment
- Requires design and planning
This method is ideal for medium to large-scale injection molding plants seeking automation, energy efficiency, and centralized control.
4. Hybrid Material Conveying Systems
Hybrid systems combine individual loaders with partial central control, offering flexibility for growing operations.
Pros:
- Allows gradual automation
- Less initial disruption to existing workflow
Cons:
- Mixed maintenance workload
- Risk of system inconsistency
This is often a transition stage toward full central feeding adoption.
5. Key Factors to Consider When Choosing
| Factor | Manual | Vacuum Loader | Central System |
|---|---|---|---|
| Initial Cost | Low | Medium | High |
| Labor Demand | High | Medium | Low |
| Cleanliness | Low | Medium | High |
| Energy Efficiency | Low | Medium | High |
| Scalability | Poor | Fair | Excellent |
| Maintenance Simplicity | Low | Medium | Centralized |
Conclusion
There is no one-size-fits-all solution when it comes to material conveying. The best material conveying method depends on your factory size, production capacity, labor resources, and long-term goals.
If your goal is to reduce labor, save energy, and scale up smoothly, a central feeding system is often the smartest long-term investment.
In this article, we compare the most common conveying methods and provide guidance on how to select the best one for your plant.
