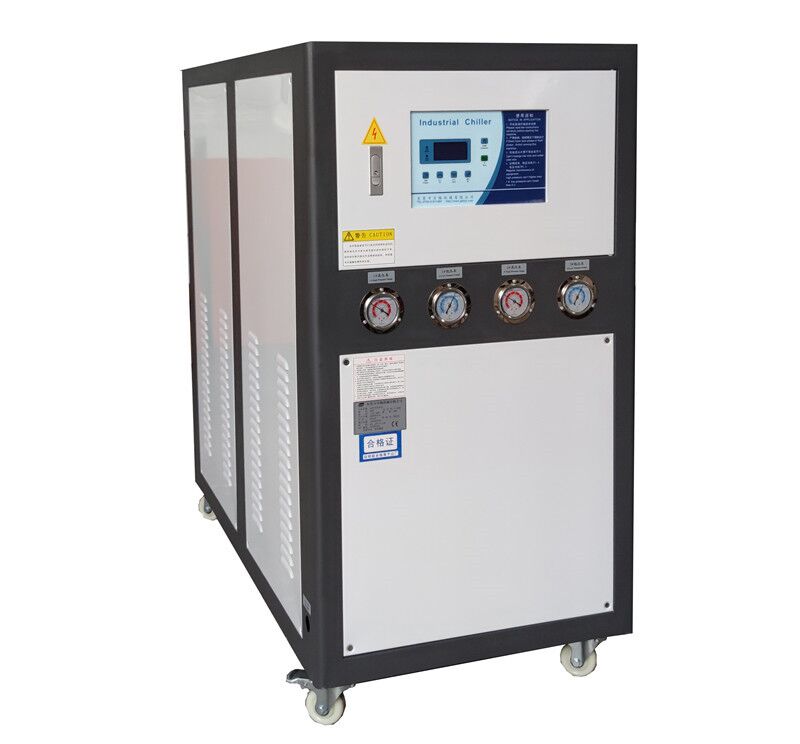

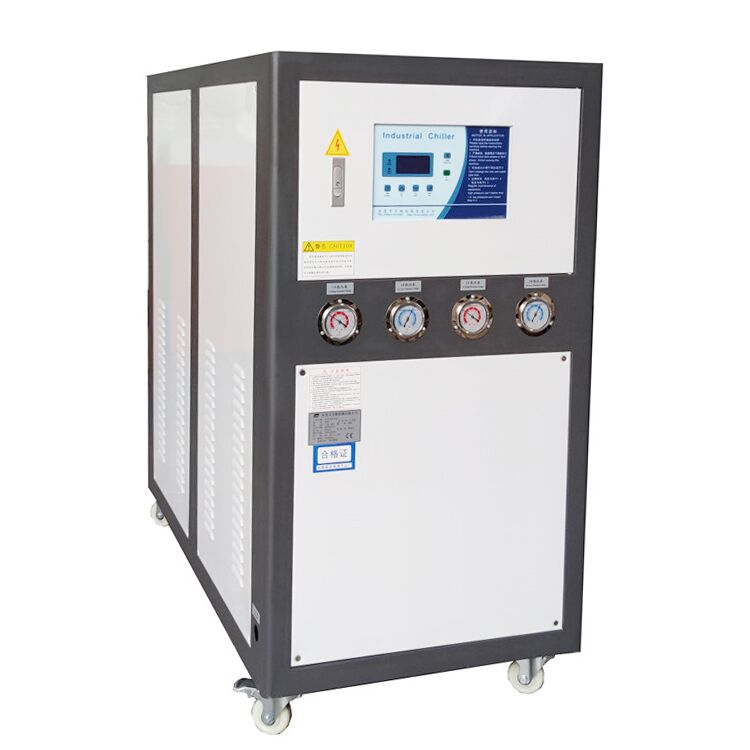

Water-cooled Water Chiller

(1 customer review)

$1,400.00$5,000.00

Water chillers adpot shell-shape condensers with the features of rapid heat transmission and excellent heat dispersion.This series can be afforded cooling ranges from 5-45 ℃,even lower to -60℃ (temperature controlled accuracy at ±1℃) .The compressors’ power range from 3HP-50HP and cooling capacities range from 7800-128500 Kcal/hr.

Features:

1.To adopt imported superb compressors and pumps to ensure safe & quite running, power saving and durable service life.

2.To employ microcomputer with easy operation which can control temperature within 3℃ to 45℃ precisely.

3.Unique design for condensor and heat-dispersion unit makes excenllent heat-exchange effect.

4.To equip with electrical current overload protection, high & low-pressure switch, electronic timer delay safety device. It will alarm to display faulty while any malfunction occurs.

5.To adpot with internal stainless steel insulated water tank with durable service life for easy cleaning & maintenance.

6.Complete safety devices including power reserve phase & power short phase and anti-freeze protection.

7.Ultra low temperature type of chillers can reach below -60℃.

8.Chillers for anti-alkaline & anti-acid type can be customized.



Type

HWC-5, HWC-10, HWC-15, HWC-20

Cooling capacity(W)

15000~60000

Number of compressors

1~2

Compressor total power(HP)

5~20

Regrigerant

R22

Water tank volume(L)

60~220

Power supply(V)

AC380V/3P/50HZ

Control voltage(V)

AC220V/1HP

Dimension L*W*H(cm)

87*55*100

Weight(KG)

160
